NEB Reaction Path Visualization¶

In this tutorial you will produce publication-quality figures from a Diels-Alder NEB calculation: a 1D energy profile, a 2D reaction valley landscape with GP surface [1] , structure galleries with four rendering backends, OCI-NEB peak overlays, and band evolution plots.

Reference

The 2D RMSD projection method used here is described in:

R. Goswami, “Two-dimensional RMSD projections for reaction path visualization and validation,” MethodsX, p. 103851, Mar. 2026, doi:10.1016/j.mex.2026.103851.

If you use these visualizations in your work, please cite the paper.

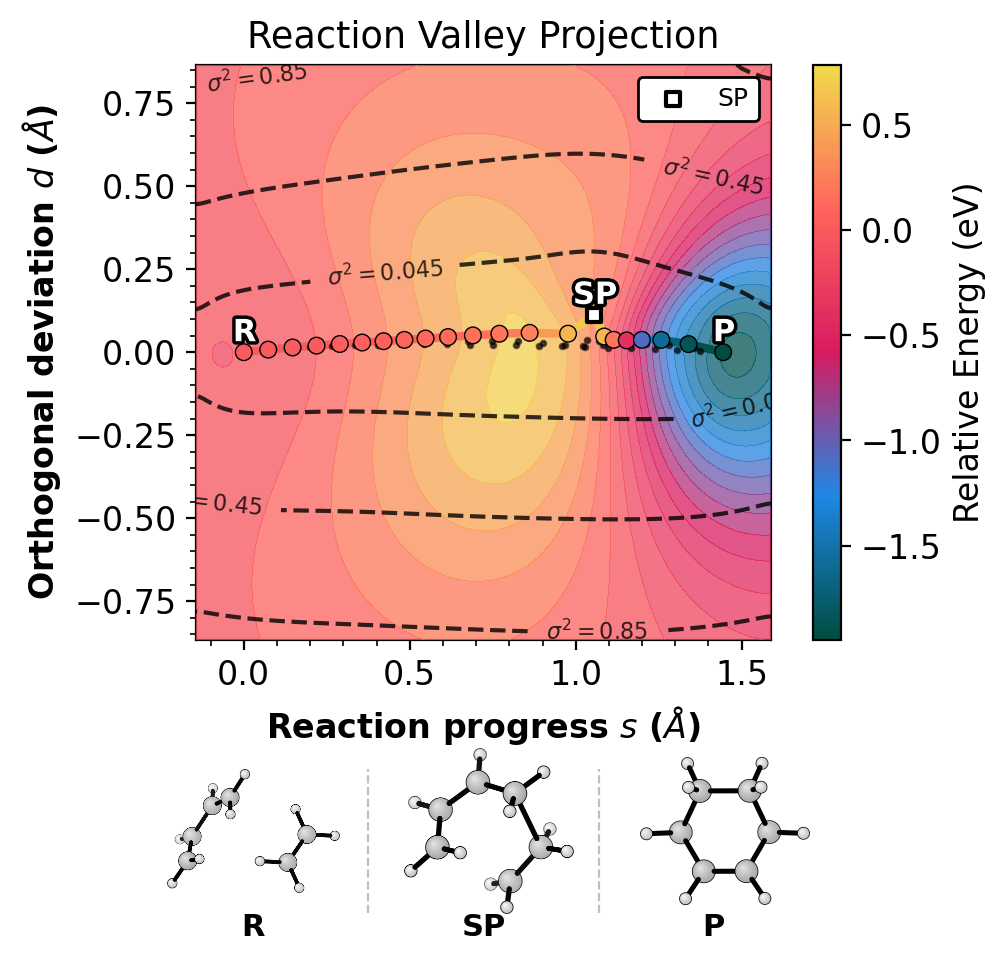

Final result: 2D GP surface using the gradient-enhanced Inverse Multiquadric kernel with xyzrender structure strip

Prerequisites¶

# Core package with all rendering backends
pip install "rgpycrumbs[all]" xyzrender solvis-tools ovito

The tutorial data ships with the rgpycrumbs source tree at docs/orgmode/tutorials/data/diels_alder/. It contains output from an OCI-NEB calculation of the Diels-Alder [4+2] cycloaddition of 1,3-butadiene and ethylene (C6H10, 16 atoms, 22 images).

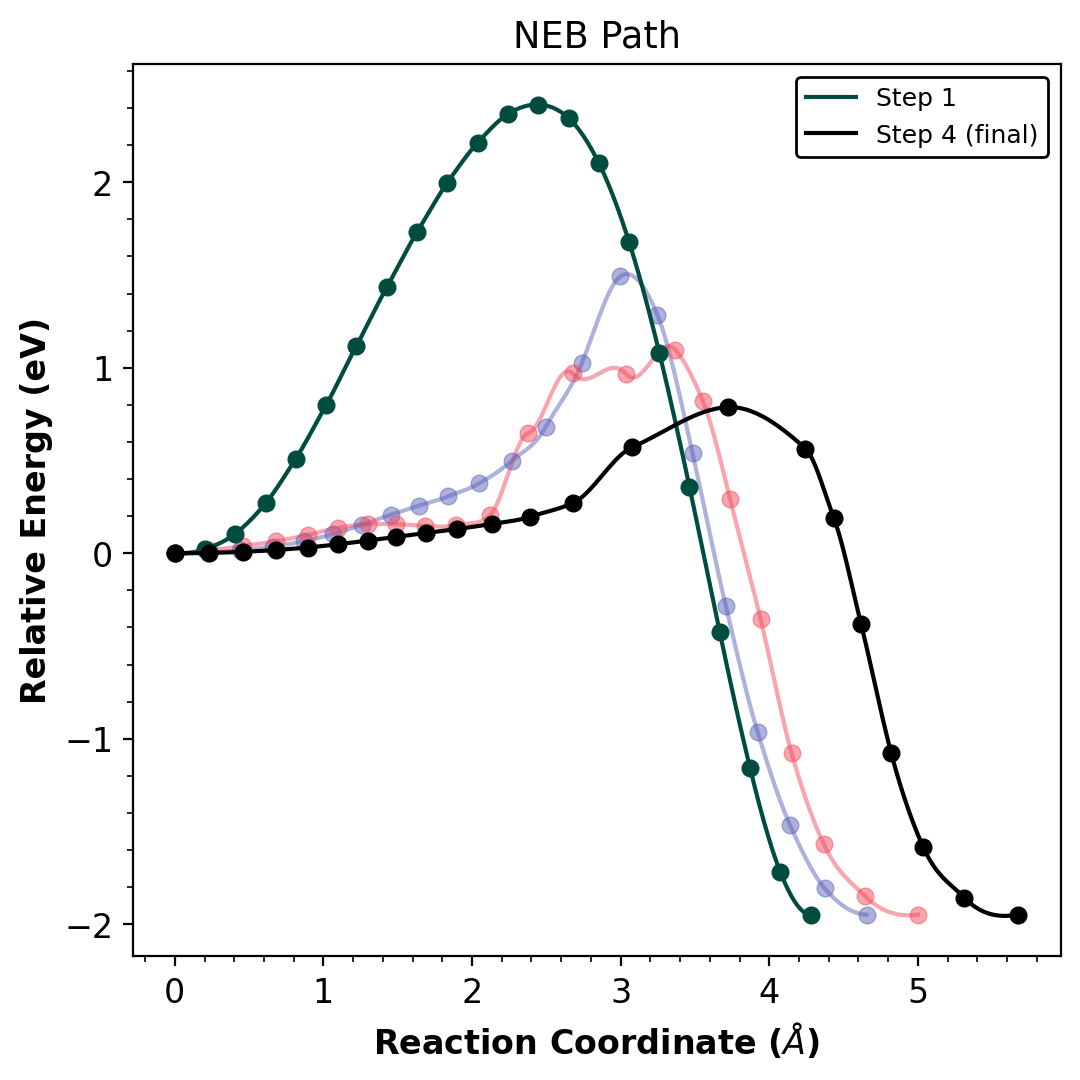

Step 1: Energy Profile¶

rgpycrumbs eon plt-neb \
  --plot-type profile \
  --input-dat-pattern "data/diels_alder/neb_*.dat" \
  --input-path-pattern "data/diels_alder/neb_path_*.con" \
  --con-file data/diels_alder/neb.con \
  --sp-file data/diels_alder/sp.con \
  -o profile.pdf

Multiple NEB optimization steps are overlaid with Hermite spline interpolation. The final converged barrier is ~0.8 eV.

Step 2: 2D Reaction Valley Landscape¶

Path overlay (no surface fit)¶

rgpycrumbs eon plt-neb \
  --plot-type landscape \
  --landscape-mode path \
  --no-project-path \
  --con-file data/diels_alder/neb.con \
  --sp-file data/diels_alder/sp.con \
  -o landscape_raw.pdf

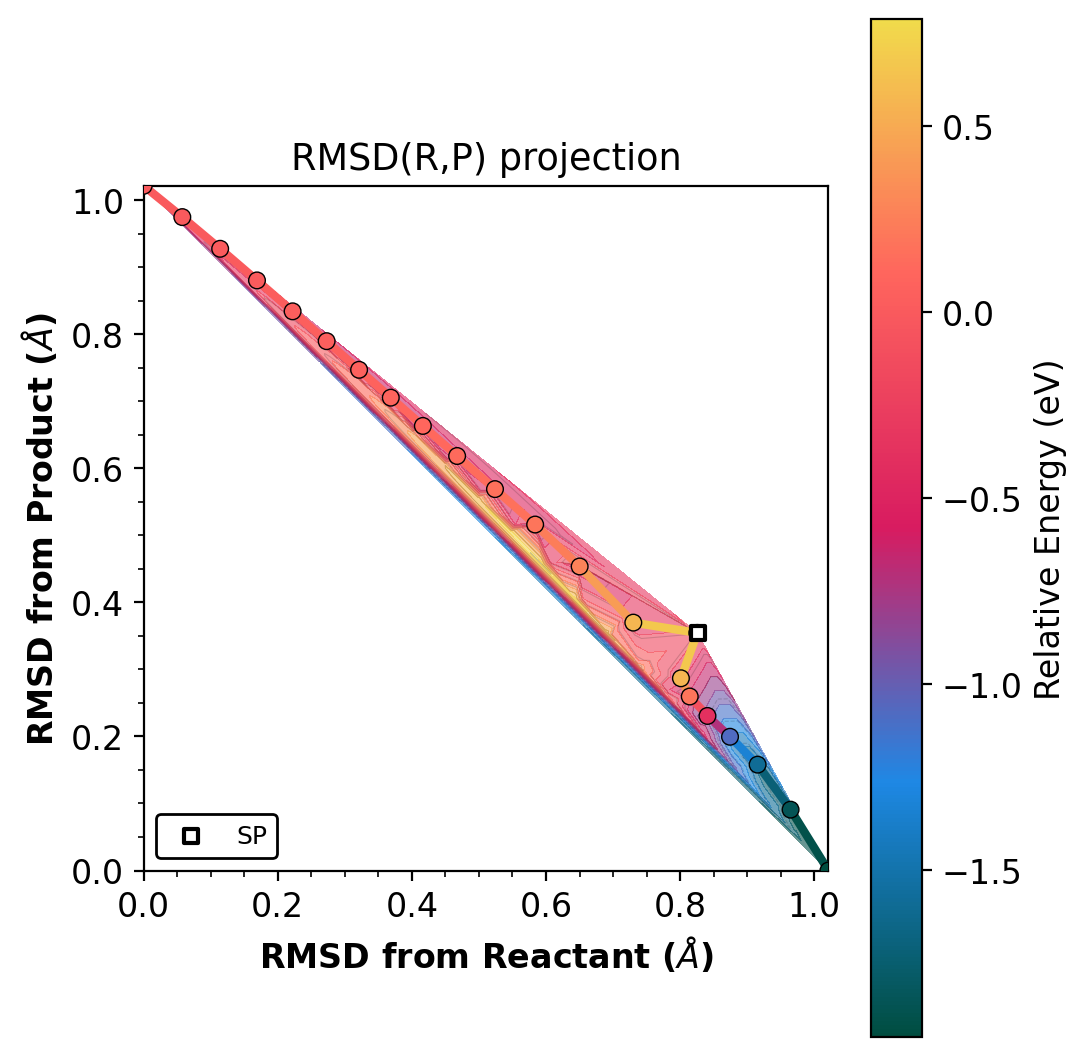

Shows the NEB path on raw RMSD(R,P) axes, colored by energy.

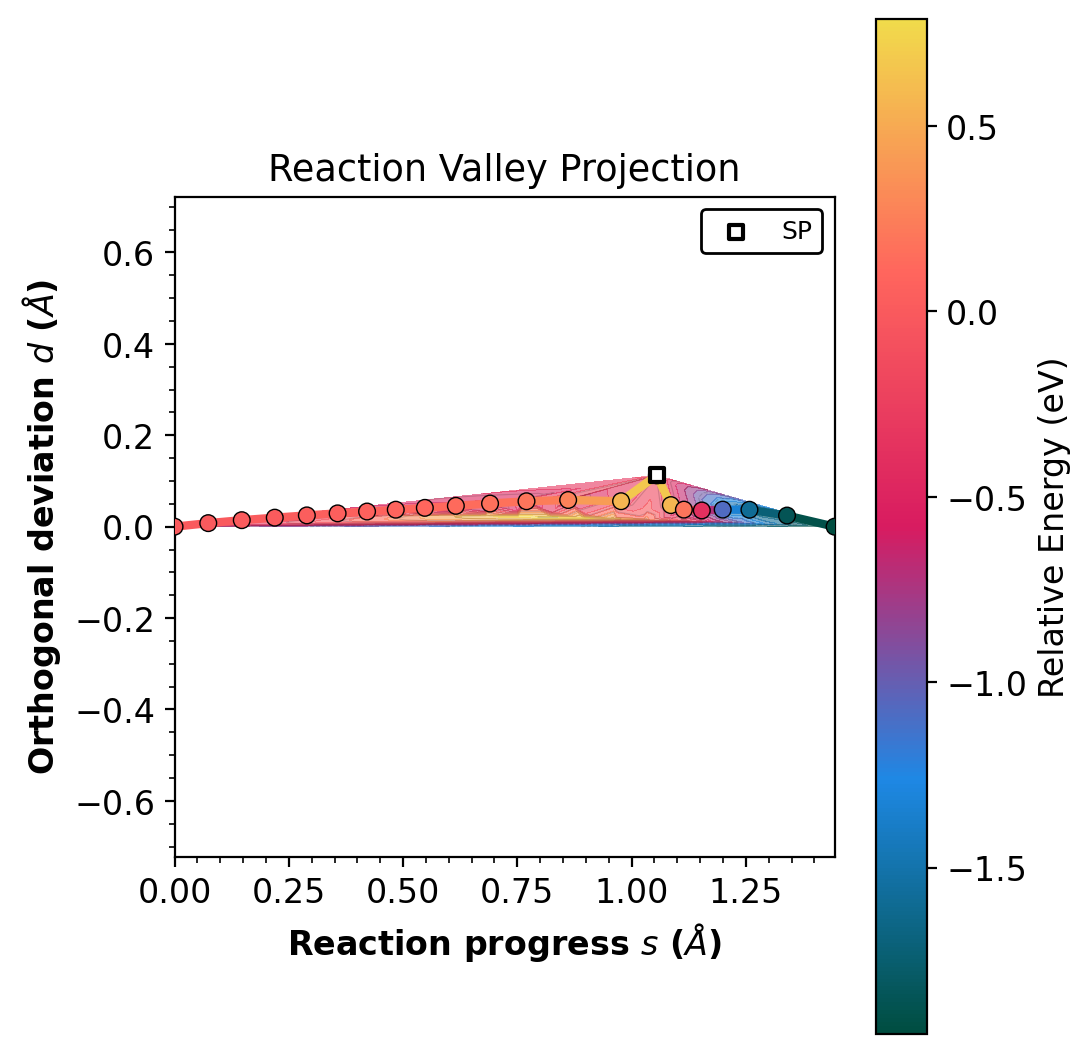

Projected (s, d) coordinates¶

rgpycrumbs eon plt-neb \
  --plot-type landscape \
  --landscape-mode path \
  --project-path \
  --con-file data/diels_alder/neb.con \
  --sp-file data/diels_alder/sp.con \
  -o landscape_projected.pdf

The --project-path flag rotates into reaction progress (s) and orthogonal deviation (d). A path with d near 0 indicates a concerted mechanism.

GP surface fit¶

rgpycrumbs eon plt-neb \
  --plot-type landscape \
  --landscape-mode surface \
  --surface-type grad_matern \
  --project-path \
  --con-file data/diels_alder/neb.con \
  --sp-file data/diels_alder/sp.con \
  -o landscape_surface.pdf

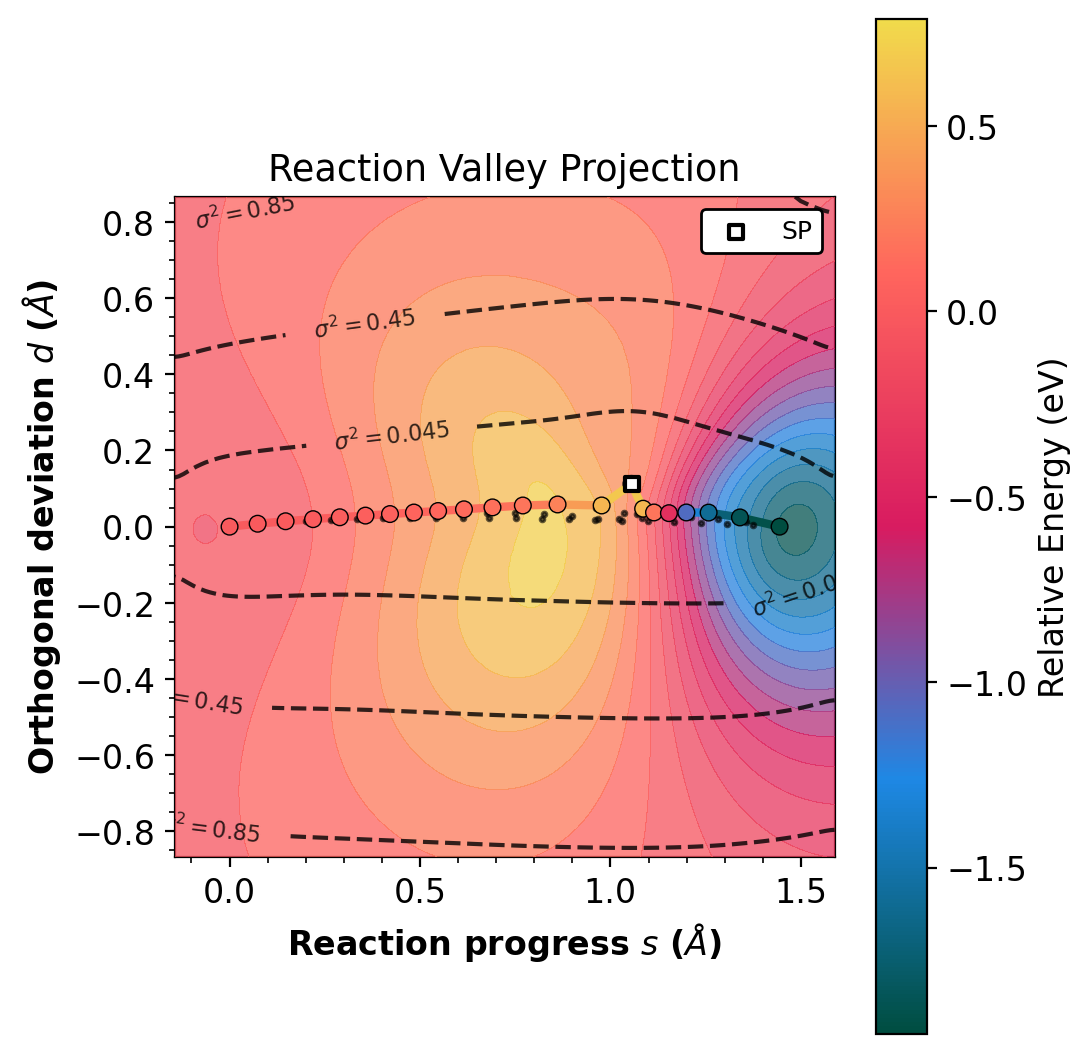

Left: projected (s,d). Right: raw RMSD(R,P). Gradient-enhanced Matern kernel GP surface with variance contours (dashed lines). Requires jax.

Step 3: Structure Galleries¶

Rendering backends¶

Four backends are available via --strip-renderer. Each wraps an external visualization library:

xyzrender (default) – ball-and-stick with the paton preset, auto-orientation via PCA
ASE – space-filling spheres, built-in (no extra deps)
solvis – PyVista ball-and-stick with transparent RGBA backgrounds
OVITO Python – off-screen rendering with orthographic projection

See the Rendering Backends Guide for detailed feature comparison.

# xyzrender (default): ball-and-stick with paton preset
rgpycrumbs eon plt-neb \
  --plot-type landscape --landscape-mode path --no-project-path \
  --con-file data/diels_alder/neb.con --sp-file data/diels_alder/sp.con \
  --plot-structures crit_points \
  --strip-renderer xyzrender \
  --strip-spacing 2.0 --strip-dividers \
  -o gallery_xyzrender.pdf

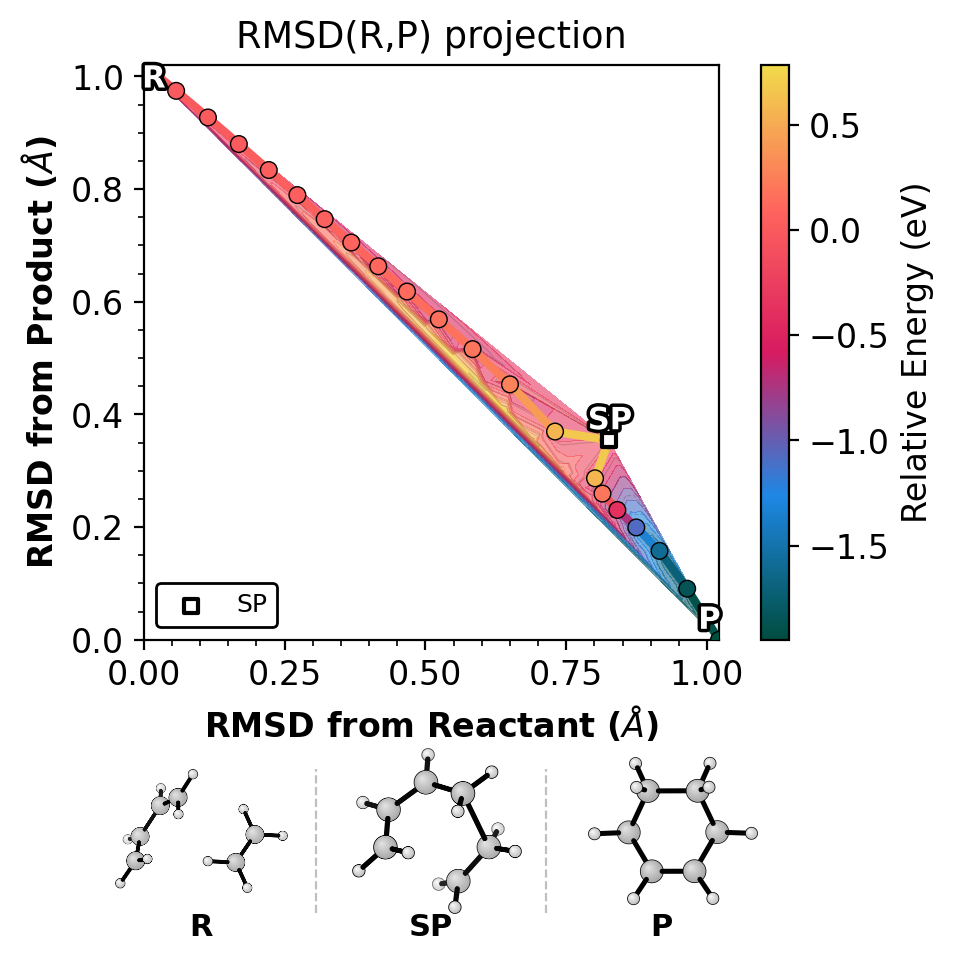

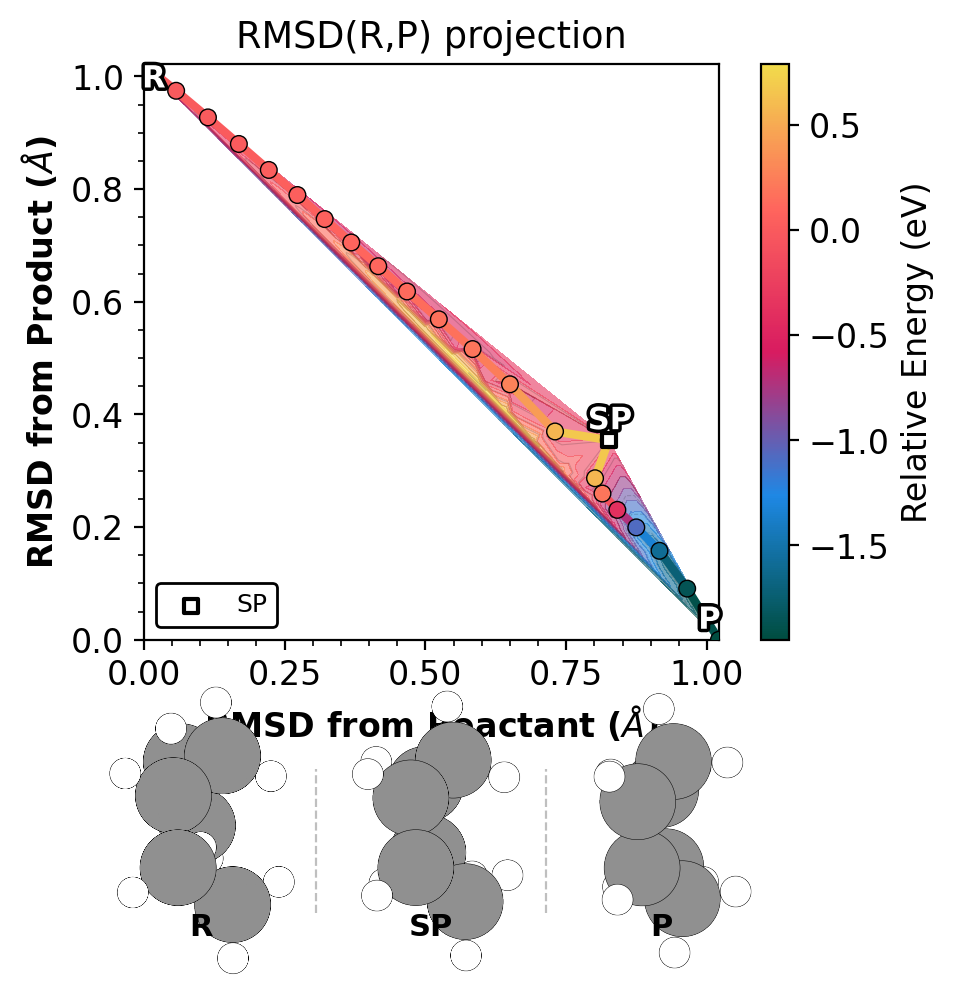

Left: xyzrender (ball-and-stick). Right: ASE (space-filling).

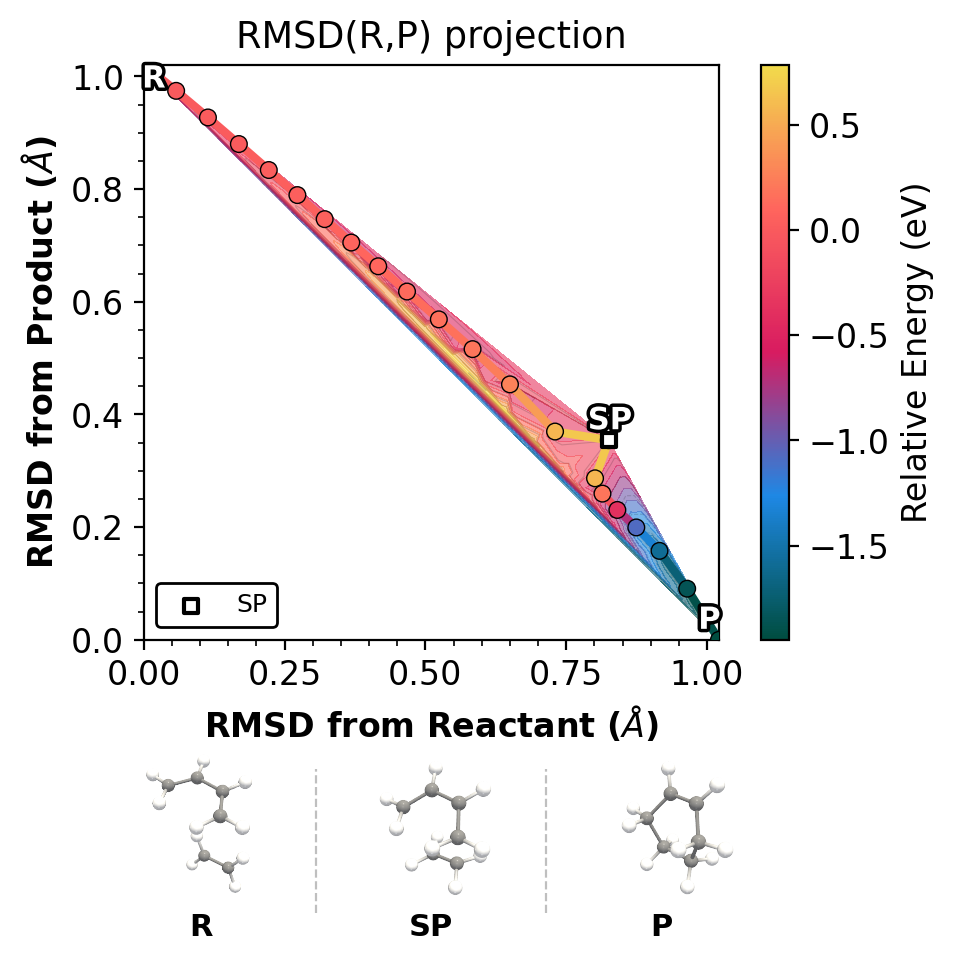

solvis rendering (PyVista, transparent background)

solvis: PyVista ball-and-stick with transparent background.

Viewing angle¶

The --rotation flag controls the viewing angle for all backends:

rgpycrumbs eon plt-neb ... --rotation "45x,30y,0z"

Perspective tilt¶

When atoms overlap in orthographic projection, use --perspective-tilt to apply a small Rodrigues off-axis rotation that reveals hidden atoms:

rgpycrumbs eon plt-neb \
  --plot-type landscape --landscape-mode path --no-project-path \
  --con-file data/diels_alder/neb.con --sp-file data/diels_alder/sp.con \
  --plot-structures crit_points \
  --strip-dividers \
  --perspective-tilt 8 \
  -o gallery_tilted.pdf

Left: no tilt (H atoms hidden). Right: 8 degree tilt (H atoms revealed).

Step 4: OCI-NEB Peak Overlay¶

rgpycrumbs eon plt-neb \
  --plot-type landscape --landscape-mode path --no-project-path \
  --con-file data/diels_alder/neb.con --sp-file data/diels_alder/sp.con \
  --mmf-peaks --peak-dir data/diels_alder/ \
  -o mmf_peaks.pdf

Star markers show where OCI-NEB dimer refinement placed the saddle.

Step 5: Band Evolution¶

rgpycrumbs eon plt-neb \
  --plot-type landscape --landscape-mode path --no-project-path \
  --con-file data/diels_alder/neb.con \
  --show-evolution \
  -o evolution.pdf

Older bands are drawn with lower opacity.

Step 6: Combined Figure¶

The full figure with 2D GP surface, xyzrender structure strip, and MMF peak overlay:

Combined: surface + MMF + xyzrender strip

rgpycrumbs eon plt-neb \
  --plot-type landscape --landscape-mode surface \
  --surface-type grad_matern --project-path \
  --con-file data/diels_alder/neb.con --sp-file data/diels_alder/sp.con \
  --mmf-peaks --peak-dir data/diels_alder/ \
  --plot-structures crit_points \
  --strip-renderer xyzrender \
  --strip-spacing 2.0 --strip-dividers \
  -o combined.pdf

Summary¶

Feature	Flag	Notes
Energy profile	`--plot-type profile`	Hermite spline
Raw RMSD landscape	`--no-project-path`	RMSD(R) vs RMSD(P)
Reaction valley	`--project-path`	(s, d) coordinates
GP surface	`--landscape-mode surface`	Needs jax
Structure strip	`--plot-structures crit_points`	R, SP, P
xyzrender	`--strip-renderer xyzrender`	Default, ball-and-stick
ASE	`--strip-renderer ase`	Space-filling
solvis	`--strip-renderer solvis`	PyVista, transparent bg
ovito	`--strip-renderer ovito`	OVITO off-screen
Custom rotation	`--rotation "45x,30y,0z"`	All backends
Perspective tilt	`--perspective-tilt 8`	Reveals hidden atoms
Spacing/dividers	`--strip-spacing 2.0 --strip-dividers`
MMF peaks	`--mmf-peaks --peak-dir .`	OCI-NEB
Band evolution	`--show-evolution`	Fading iterations
